Fill¶

Purpose¶

Fill eliminates depressions by raising cell elevations to the lowest pour point elevation. The operation ensures water can flow from any cell to a domain boundary without encountering lower adjacent cells.

When to Use¶

Filling raises depression interiors rather than modifying barrier cells. Use fill when:

Depressions represent genuine closed basins
Preserving barrier elevations is more important than depression interiors
Breaching would require extensive or unrealistic terrain modification
Processing pipeline requires fully conditioned surface with no depressions

Filling is typically applied after breaching to handle remaining depressions that breach cannot eliminate within search radius or cost constraints.

Note

Filling does not resolve undefined flow in flat areas and will in fact create flat areas of undefined flow anywhere that it fills. Apply flow_direction() with resolve_flats=True after breaching and filling.

Parameters¶

input_path¶

Path to input DEM raster. GDAL-readable format. Single band. Float32 data type. Nodata cells handled according to fill_holes parameter.

output_path¶

Path for output filled DEM. Written as GeoTIFF. Inherits projection and geotransform from input. When None, modifies input file in place.

chunk_size¶

Tile dimension in pixels for tiled processing. Default 2048. Set to 0 or 1 for in-memory processing.

working_dir¶

Directory for temporary files during tiled processing. Ignored for in-memory mode. When None, uses system temporary directory.

fill_holes¶

Boolean flag controlling nodata region treatment. When False (default), nodata regions remain unchanged. When True, nodata cells assigned elevation of lowest surrounding valid cell, effectively filling nodata holes.

progress_callback¶

Optional callback for monitoring long operations. See ProgressCallback API.

CLI Usage¶

overflow fill \
    --input_file dem.tif \
    --output_file dem_filled.tif

Python API Usage¶

import overflow

# Output to new file
overflow.fill(
    input_path="dem.tif",
    output_path="dem_filled.tif"
)

# Modify in place
overflow.fill(
    input_path="dem.tif",
    output_path=None
)

All cells in the output DEM will have a flow path to the domain boundary with monotonically decreasing or constant elevation. Unmodified cells retain their original elevations and no cells are lowered.

Visualization¶

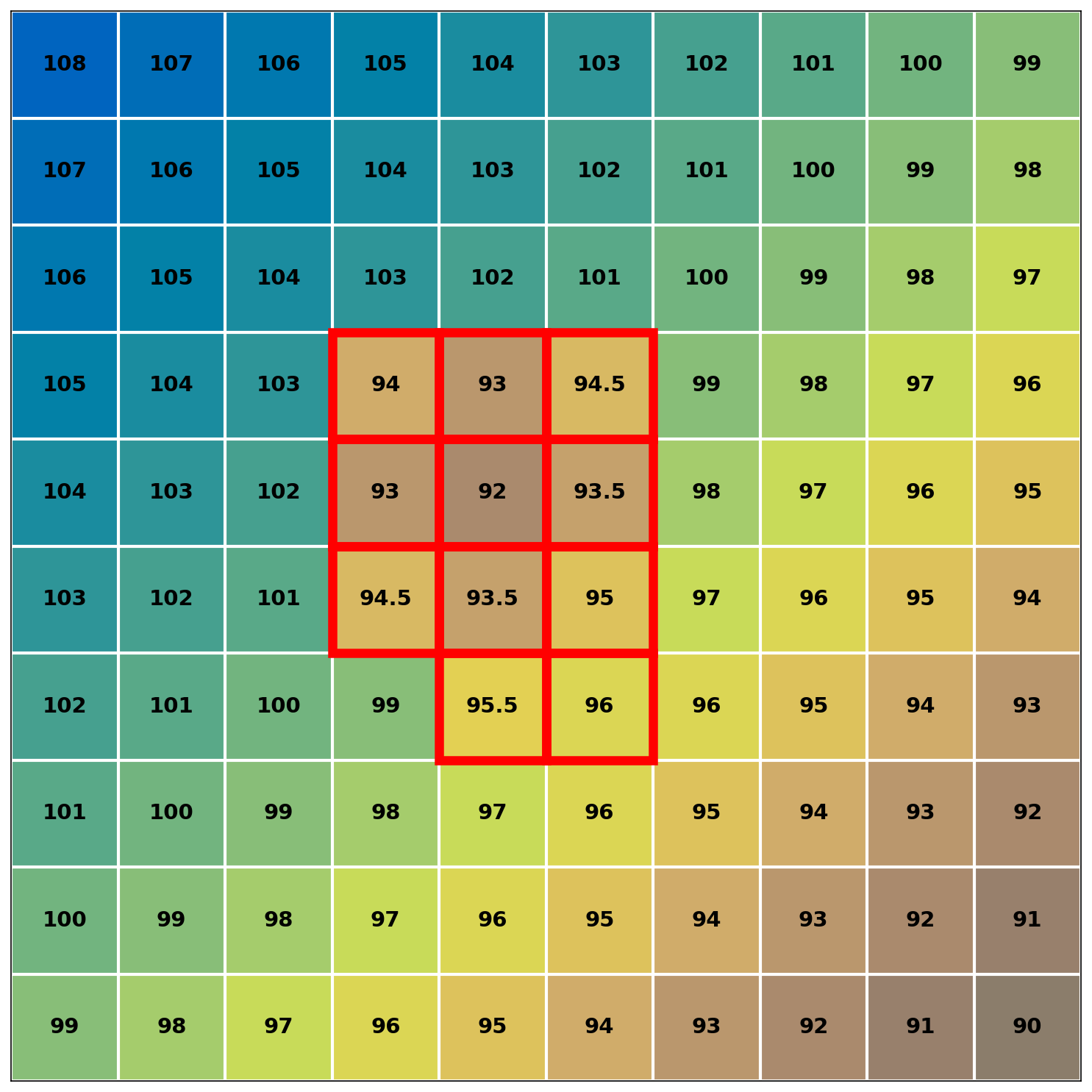

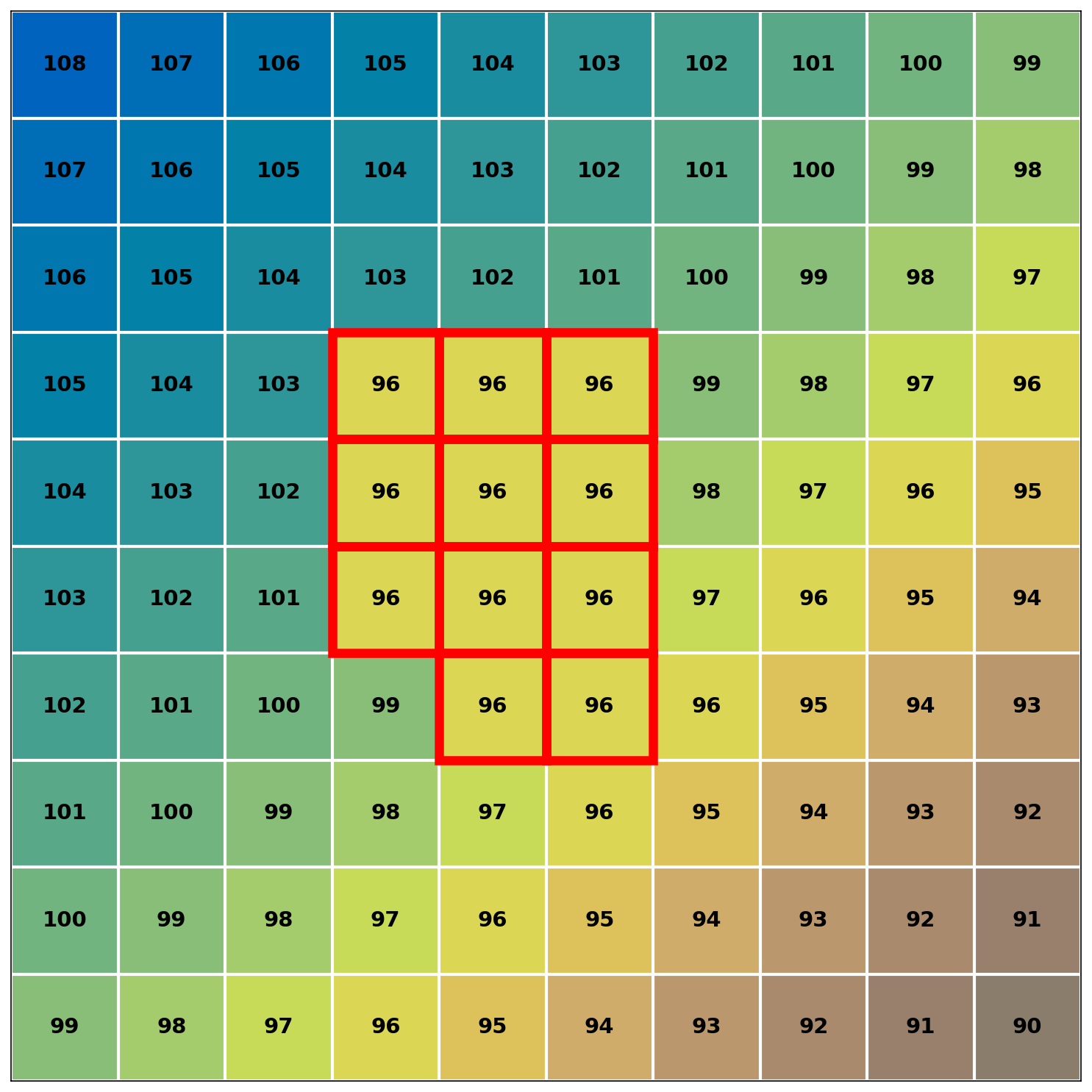

Before Fill	After Fill
