Flow Direction and Flat Resolution¶

Purpose¶

Flow direction assigns each cell a D8 direction code indicating steepest descent to one of eight neighbors. Flat resolution eliminates undefined flow in flat regions by computing gradients away from higher terrain and toward lower terrain.

Flow Direction Encoding¶

Output raster uses byte encoding:

Value	Direction	Offset (col, row)
0	East	(1, 0)
1	Northeast	(1, -1)
2	North	(0, -1)
3	Northwest	(-1, -1)
4	West	(-1, 0)
5	Southwest	(-1, 1)
6	South	(0, 1)
7	Southeast	(1, 1)
8	Undefined	-
9	Nodata	-

See FlowDirection.

Direction indices proceed counter-clockwise from East. Undefined cells occur in flat regions when flat resolution is disabled. Nodata cells inherit nodata status from input DEM.

Parameters¶

input_path¶

Path to conditioned DEM raster. GDAL-readable format. Single band. Float32. Must be hydrologically conditioned (filled) to prevent internal drainage.

output_path¶

Path for flow direction output. Written as GeoTIFF. UInt8 data type. Inherits projection and geotransform from input. Nodata value set to 9.

chunk_size¶

Tile dimension in pixels. Default 2048. Set to 0 or 1 for in-memory processing.

working_dir¶

Directory for temporary files during flat resolution in tiled mode. Ignored for in-memory mode. When None, uses system temporary directory.

resolve_flats¶

Boolean controlling flat resolution. Default True. When False, cells in flat regions assigned value 8 (undefined). When True, flat cells receive directions routing flow away from higher terrain and toward lower terrain. There will be no undefined cells.

progress_callback¶

Optional callback for monitoring long operations. See ProgressCallback API.

flat_resolution_chunk_size_max¶

Maximum chunk size for flat resolution processing. Default 512. This parameter is only available in the Python API (not in the CLI) and provides advanced control over flat resolution performance.

When chunk_size exceeds this value, flat resolution will automatically use this smaller chunk size instead. This prevents performance issues in areas with large contiguous regions of undefined flow (such as large filled depressions or water bodies), where large chunks can significantly slow down processing.

Advanced Python API Only

This parameter is intentionally not exposed in the CLI interface. It's an advanced feature that requires understanding of the performance implications of chunk size during flat resolution.

CLI Usage¶

overflow flow-direction \
    --input dem_filled.tif \
    --output fdr.tif \
    --resolve-flats

Python API Usage¶

Basic usage:

import overflow

overflow.flow_direction(
    input_path="dem_filled.tif",
    output_path="fdr.tif",
    resolve_flats=True
)

Advanced usage with custom flat resolution chunk size (Python API only):

import overflow

# For large DEMs with significant flat areas, you may want to use
# a larger chunk_size for flow direction computation but limit the
# chunk size during flat resolution to avoid performance degradation
overflow.flow_direction(
    input_path="dem_filled.tif",
    output_path="fdr.tif",
    chunk_size=2048,  # Large chunks for flow direction
    resolve_flats=True,
    flat_resolution_chunk_size_max=512  # Cap flat resolution chunks
)

In the output flow direction raster, every non-nodata cell with at least one lower neighbor has a defined flow direction (0-7). There will be no cycles in the flow direction raster. If resolve_flats is true, there will also be no undefined flow directions.

Note

In order to guarantee the flow direction raster is free of undefined flow directions, you MUST provide a DEM with no sinks/pits (i.e., the fill process has been run) AND set resolve_flats to True.

Visualization¶

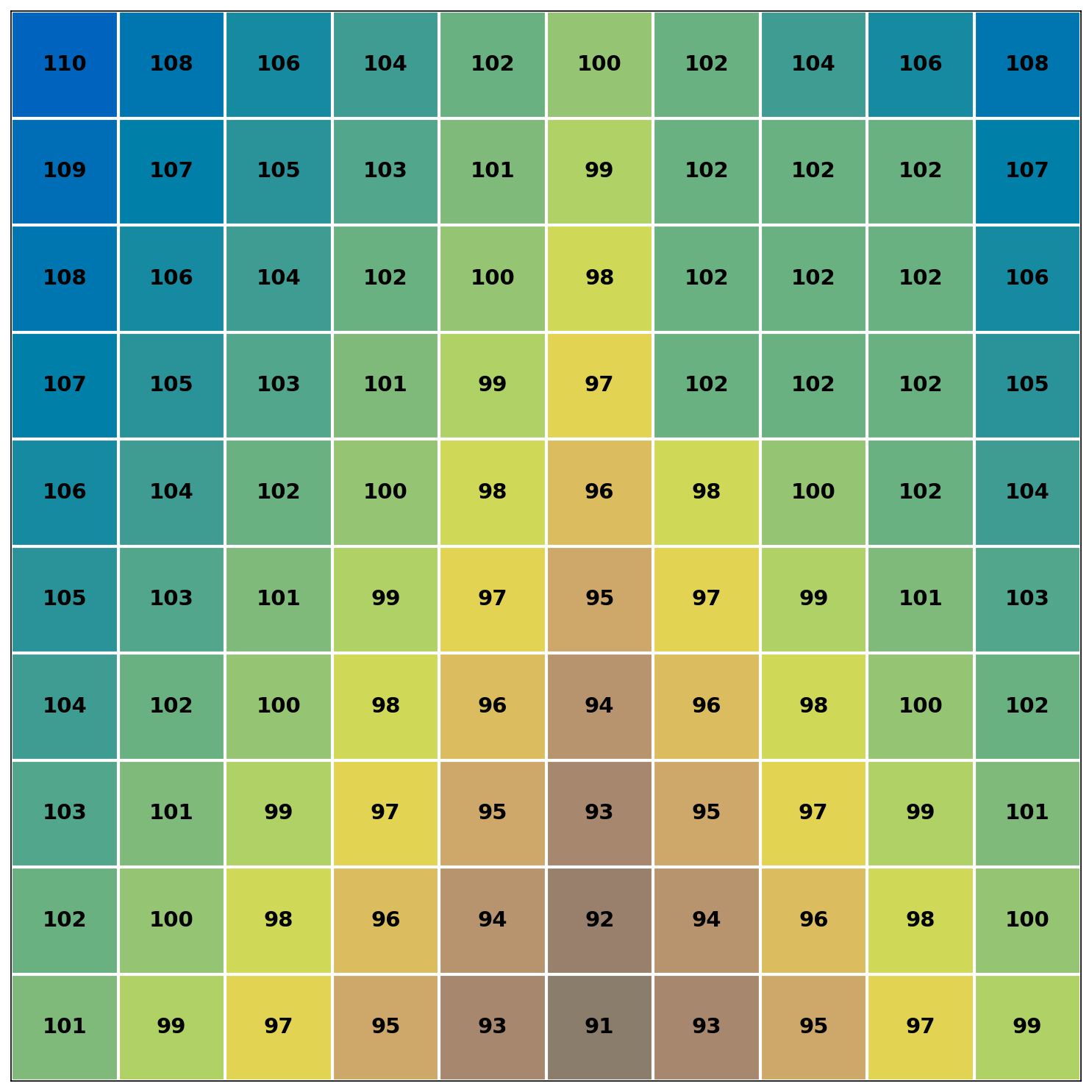

Input DEM	Flow Direction Output

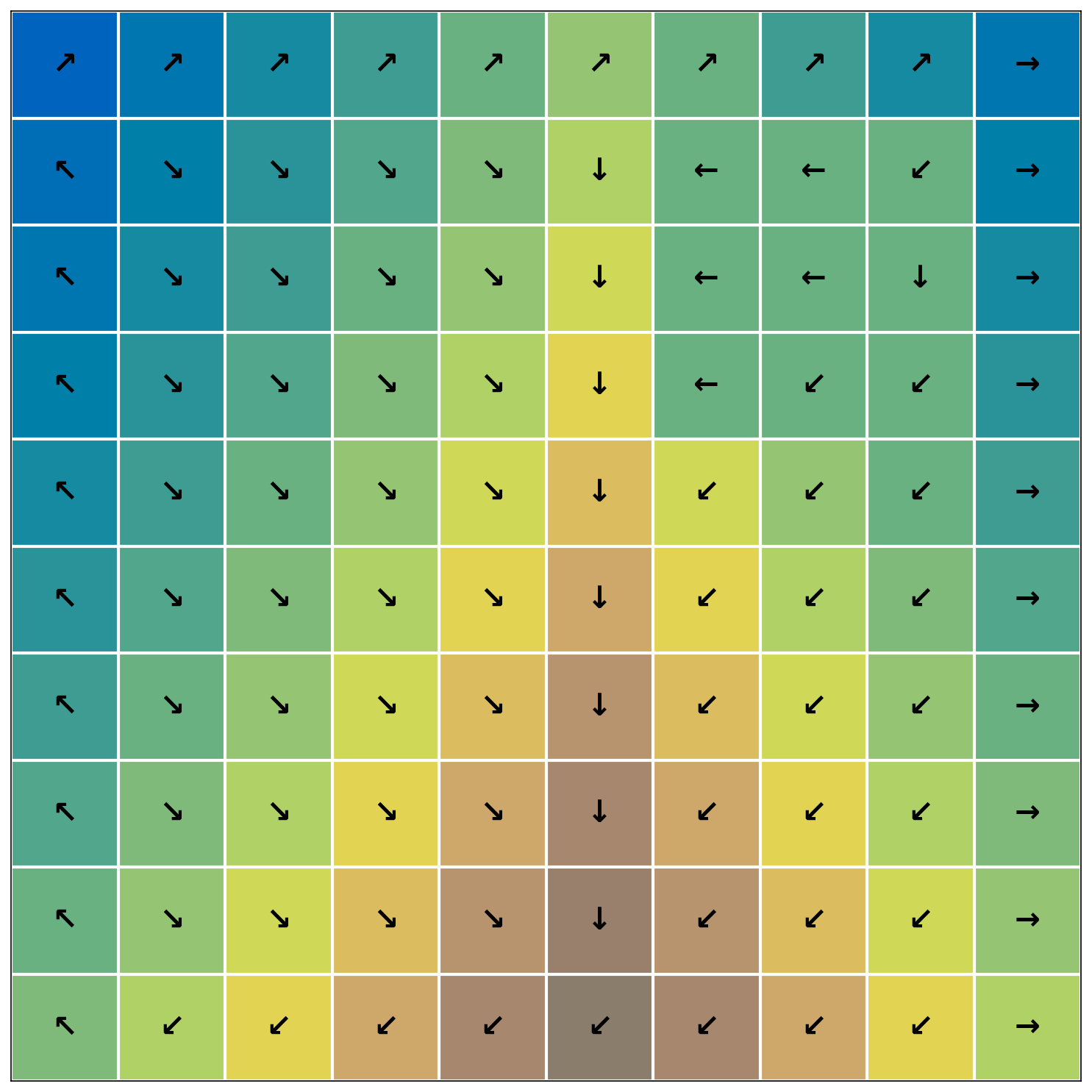

The input DEM shows elevation values sloping from upper-left (108) to lower-right (90). The flow direction output displays arrows indicating the D8 direction of steepest descent for each cell.

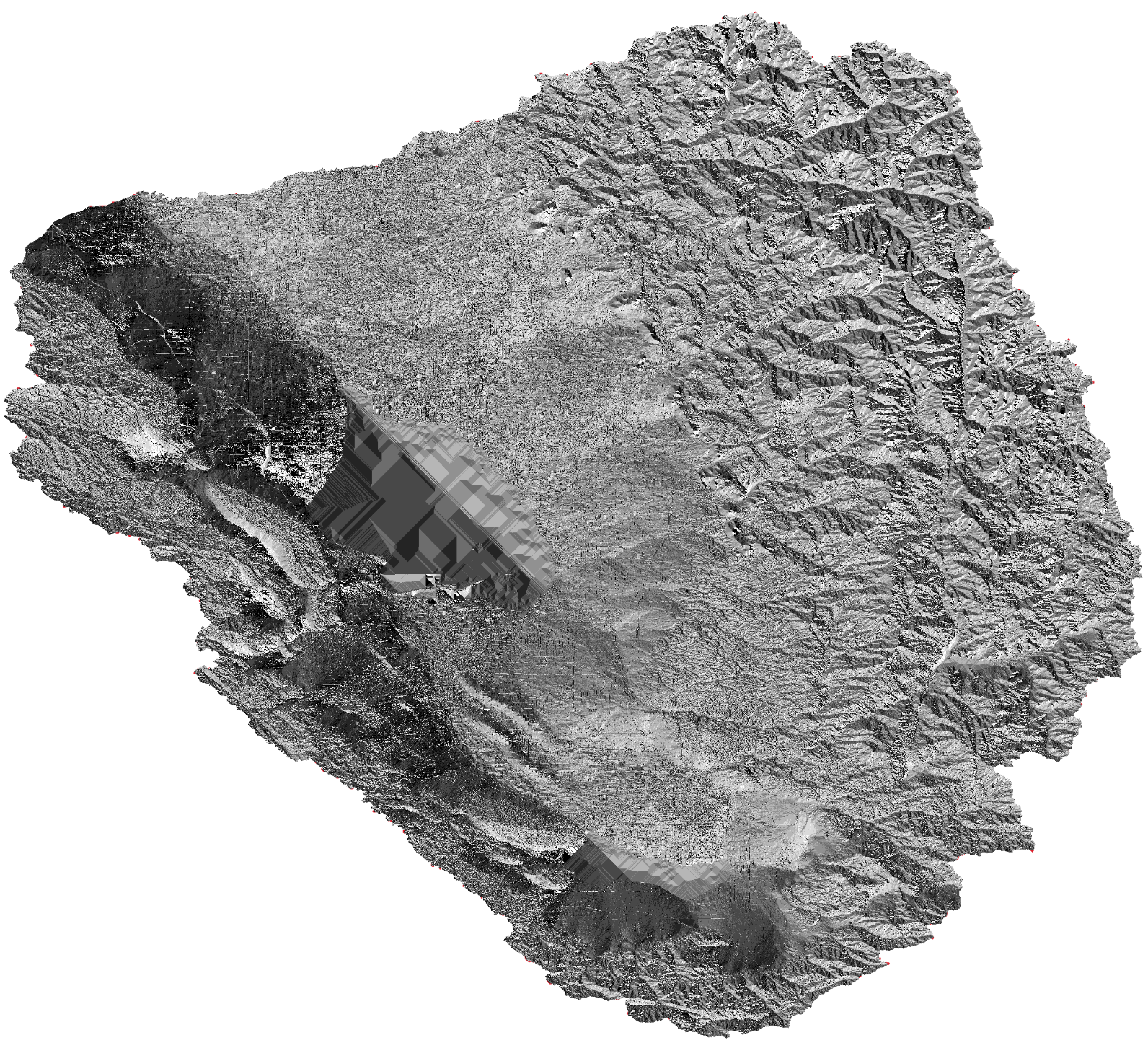

Input DEM	Flow Direction Output

Performance Considerations¶

The tiled algorithm for flat resolution is the most computationally intensive process implemented in Overflow. Flow direction rasters with large contiguous areas of undefined flows (e.g., large filled depressions or water bodies) can have a significant performance hit if used with a large chunk_size.

By default, the flat_resolution_chunk_size_max parameter caps the chunk size used during flat resolution at 512 pixels, even if you specify a larger chunk_size for the initial flow direction computation. This provides a good balance between performance and memory usage for most use cases.
